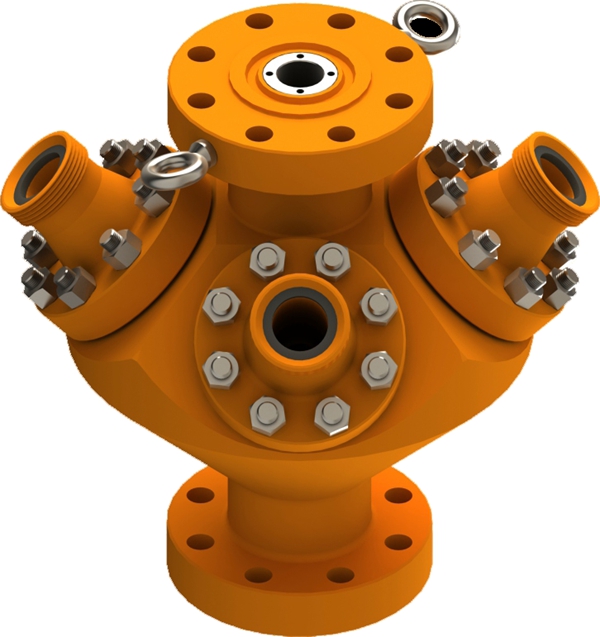

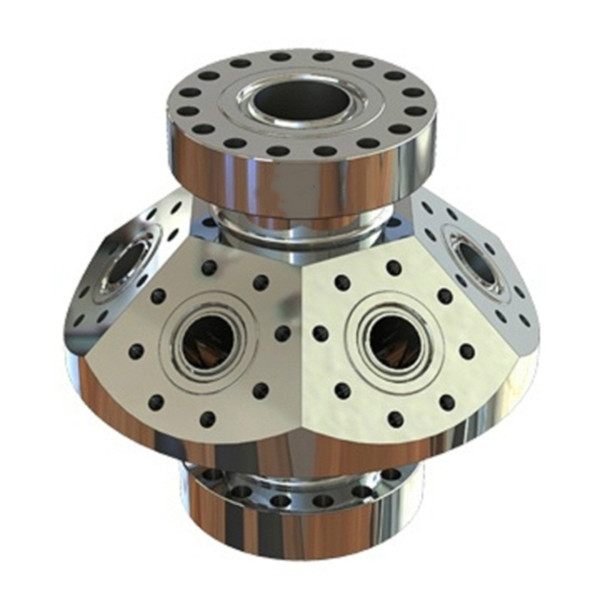

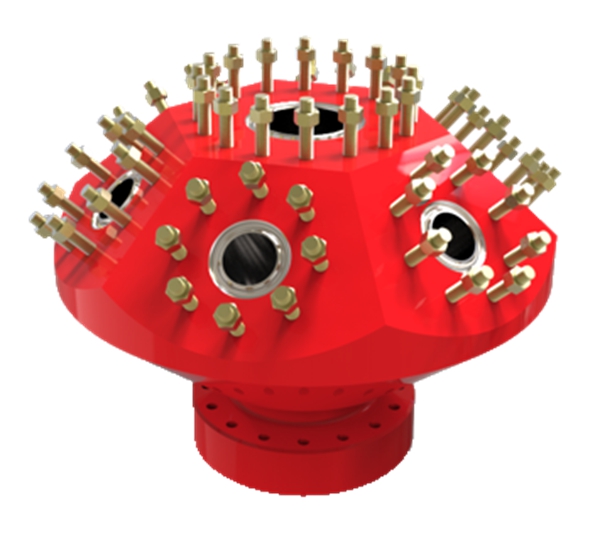

Frac Head- Goat Head is the equipment often used on frac tree and frac stack during fracturing work, which is often in studded and flange-end connection. The frac head provided by Aloy Energy are various sizes and inlets used to tie multiple frac lines into the frac tree. The customized design and OEM are available.
Working Pressure
5,000 psi~20,000 psi
Working Medium
Drilling fluid, frac acidizing fluid, oil, sour natural gas, water
Main Bore
4-1/16"~9"
Temperature Level
L~U
Material Grade
AA, BB, CC, DD, EE, FF, HH
Product Spec. Level
PSL1~PSL4
Performance Level
PR1, PR2
